PROCOM BAND FILTER 380 - 470 MHZ - 6225247

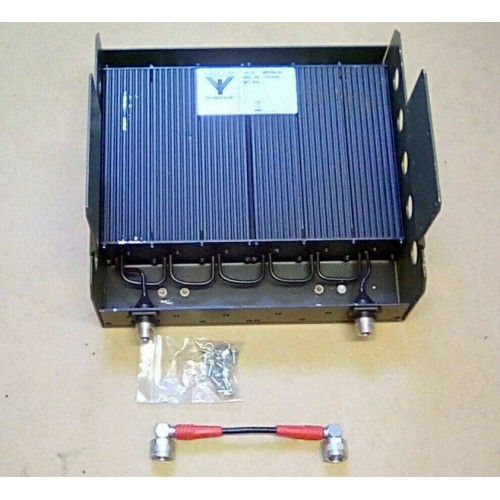

6225247 BRF 70/6-150, Band-reject (notch) filter, 380 - 470 MHz, 2X N-female connections. 200001244 BRF 70/6-150-N(f) 5915226225247 5915 22 622 5247 5915-22-622-5247 The BRF 70/6-150 is a 6-resonator notch-filter using full-length ¼ λ cavities. This filter rejects a narrow band of frequencies and passes all others. The filter can be applied both in connection with transmitters and receivers to attenuate interfering signals which cause cross modulation effects. The filter can be employed as a single component or it can act as an integrated part of a complete multi-coupling system. The BRF 70/6-150 can be tuned within the complete 380 - 470 MHz band. Careful design and choice of materials ensure reliable operation over a wide temperature range. The housing is made of extruded aluminium, the chassis of brass, and teflon insulation has been applied in the coaxial cables and in the connectors. The filter is coated with black vinyl to prevent corrosion. COMES IN AS NEW CONDITION COMPLETE WITH VEHICLE INSTALLATION KIT BRACKETS, DOG LEG LEAD AND FIXINGS.
