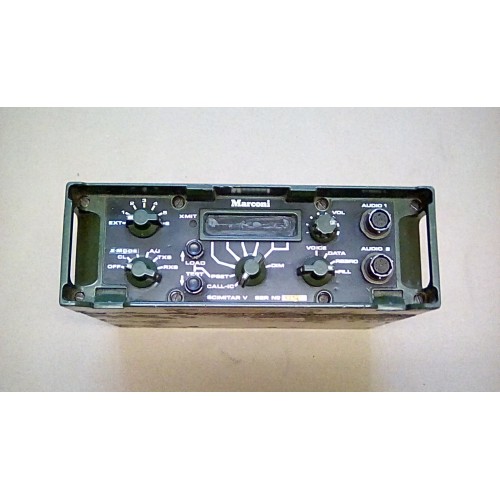

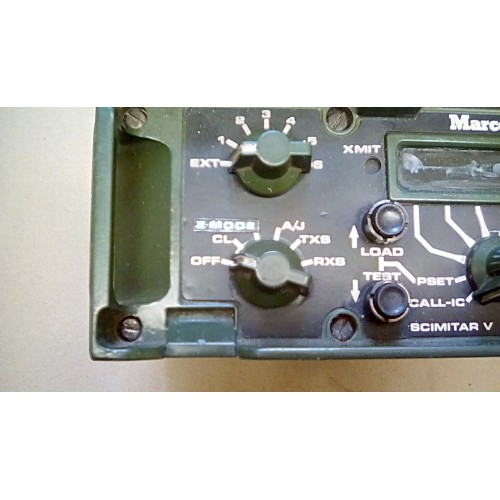

MARCONI SCIMITAR V RADIO VHF 30-88MHZ (UK VERSION) - MSVUKX256Z

MARCONI SCIMITAR V RADIO (UK VERSION) VERY RARE, WITH "Z MODE" RATHER THAN "SEC" OPTION, RADIO ONLY NO ATAA OR BATTERY ETC, FULLY TESTED WORKING AND READY TO GO WHEN USED WITH VAU ETC, WE ALSO STOCK MOST ACCESSORIES FOR THIS EQUIPMENT, LISTED SEPARATELY.

VHF mobile or manpack, 30 .. 88 MHz; with 2320 Channels

weight as manpack 4.8kg.

Suitable for portable, mobile or fixed station when used with other add on equipment

It is operated from the front, or from a mobile operation unit (Vehicle Applique Unit - VAU / SOLD SEPARATELY) , or  by D10 2 wire line equipment, that can be used upto 2 km away.

Using the Audio 2 connectors, two radios can form a radio relay/re broadcast system.

For portable use, an automatic  tuner antenna adaptor (ATAA / SOLD SEPARATELY) is clipped on.

The broadband antenna (SOLD SEPARATELY) used in mobile mode, needs no adjustment.

Having removed the battery and the ATAA, the transceiver (main block / THIS ITEM OFFERED FOR SALE) can be inserted into the VAU , and forms a mobile station or static with 0.1 or 5W HF- output.

An additional HF- amplifier (SOLD SEPARATELY) can be inserted into the VAU, connected via multi pin  cable, giving an HF- output of 0.1, 5, or 50W

(Z MODE ENCRYPTED VERSION AS SUPPLIED IN VERY SMALL QTY TO UK MOD FOR TESTING AND EVALUATION)

Applicable Models

MARCONI SCIMITAR V VERY RARE UK VERSION, Z MODE ENCRYPTED, VIA FILL GUN, RATHER THAN FREQUENCY HOPPING ON OTHER "SEC" MODE VERSIONS.
